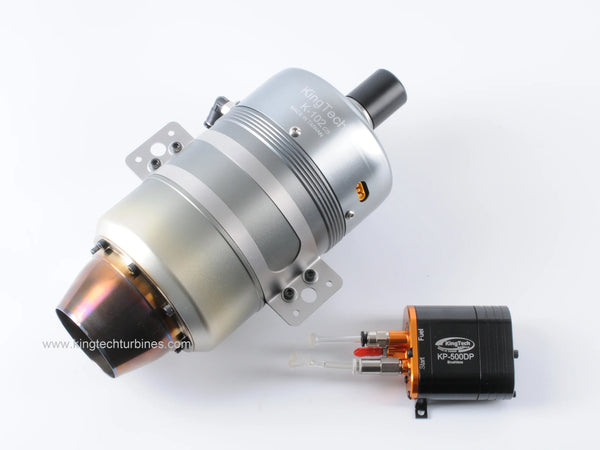

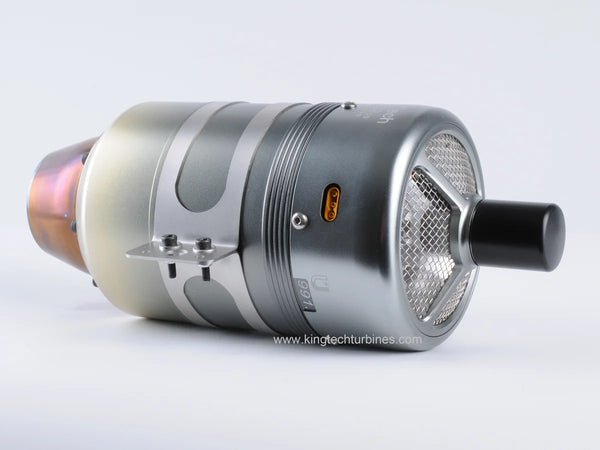

K-102G5 SPECIFICATIONS
Diameter: 84mm / 3.30"
Length: 203.3mm / 8"
Weight: 910g / 2lb
Maximum RPM: 160000
Thrust: 10kg @ 15°C. / 22lb @ 59°F
EGT: 750°C max
Pump Type: Digital Sbus brushless pump KP500DP
Battery: 11.1V Lipo ( At least 2200mah 35C )
Start Time: 10-15 seconds
Fuel consumption: 330g / min ( 11.64oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

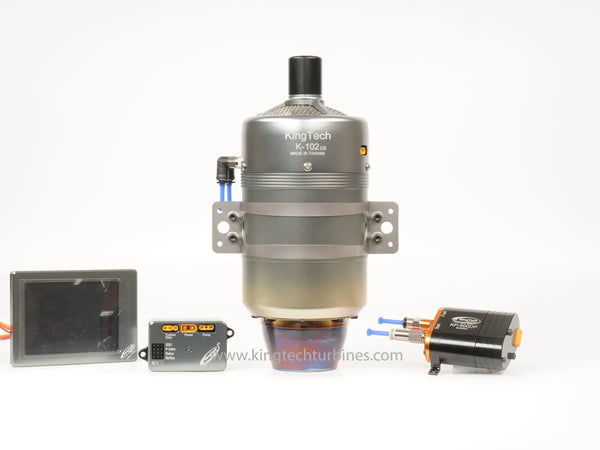

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP500DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
