K-130G5 SPECIFICATIONS
Diameter: 94.5mm / 3.72”
Length: 220mm / 8.66”
Weight: 1200g / 2.64lb ( 1270g including brackets)
Maximum RPM: 142000
Thrust: 13kg kg @15°C / 28.6lb @ 59°F
EGT: 700°C
Pump Type: Digital Sbus brushless pump KP500DP
Battery: 11.1V Lipo ( At least 2200mah 35C )
Start Time: 10-15 seconds
Fuel consumption: 410g / min ( 14.46oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

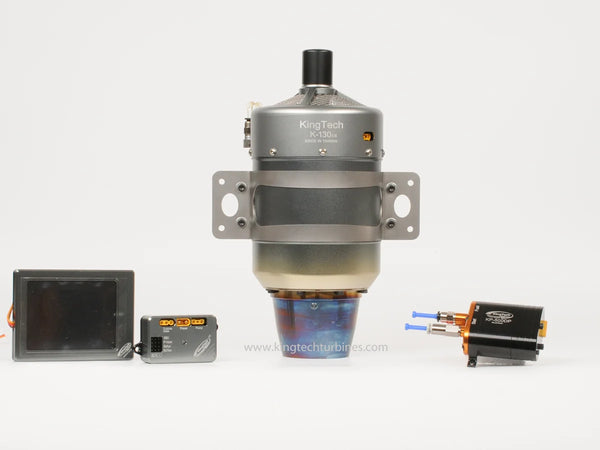

G5 MODEL COMPONENTS LIST

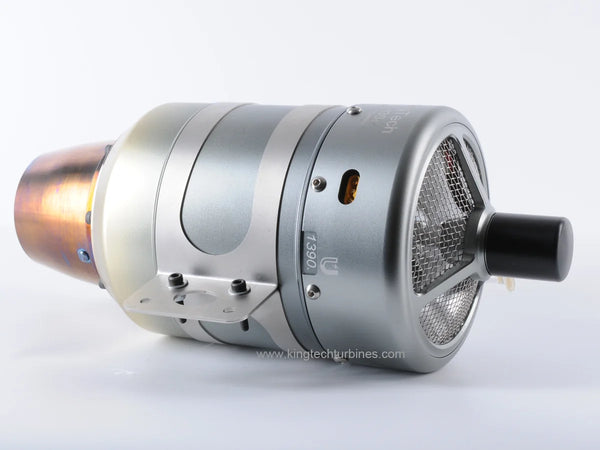

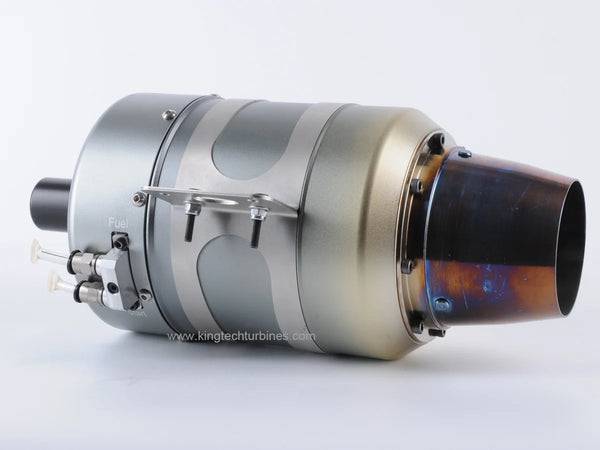

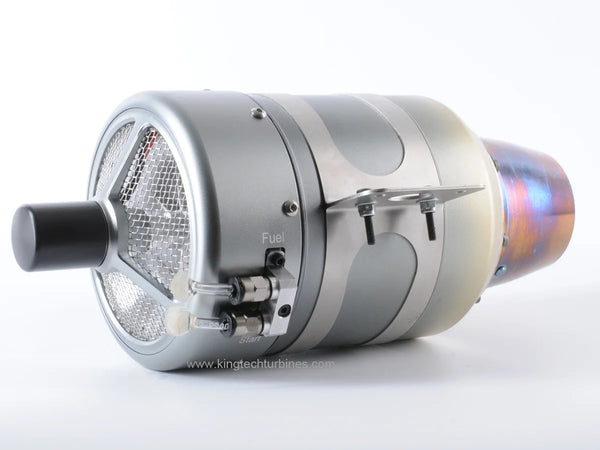

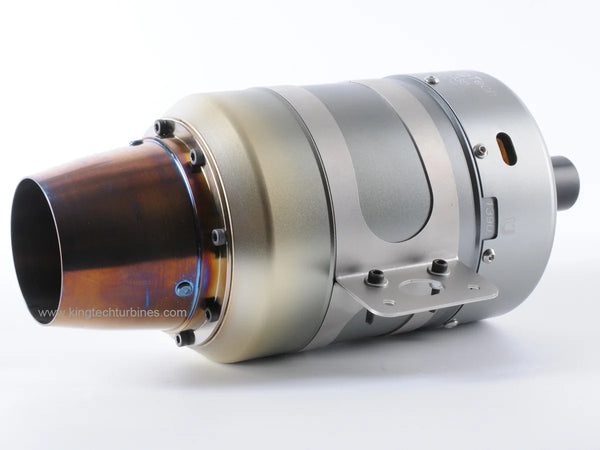

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)

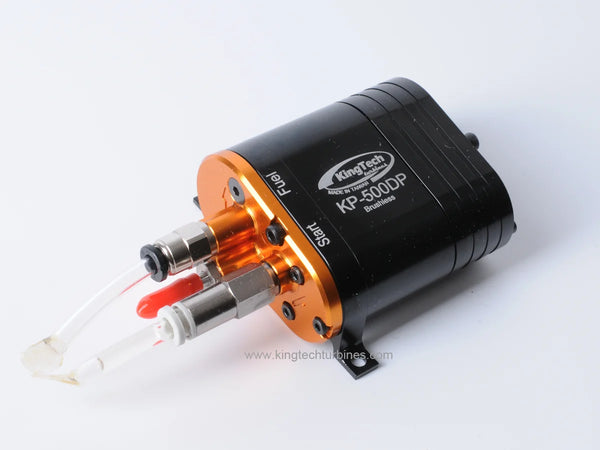

• Digital Sbus brushless pump KP500DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
