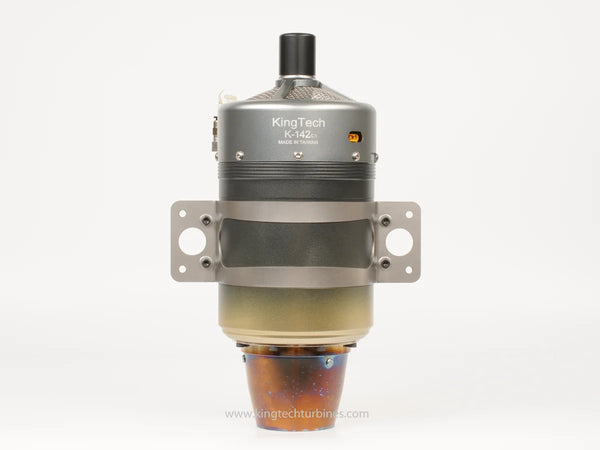

K-142G5 SPECIFICATIONS
Diameter: 92.25mm / 3.63”
Length: 235mm / 9.25”
Weight: 1300g / 2.86lb
Maximum RPM: 142000
Thrust: 14kg @ 15°C / 30.86lb @ 59°F
EGT: 750°C max
Pump Type: Digital Sbus brushless pump KP600DP
Battery: 11.1V Lipo ( At least 2200mah 35C )
Start Time: 10-15 seconds
Fuel consumption: 440g / min ( 15.52 oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

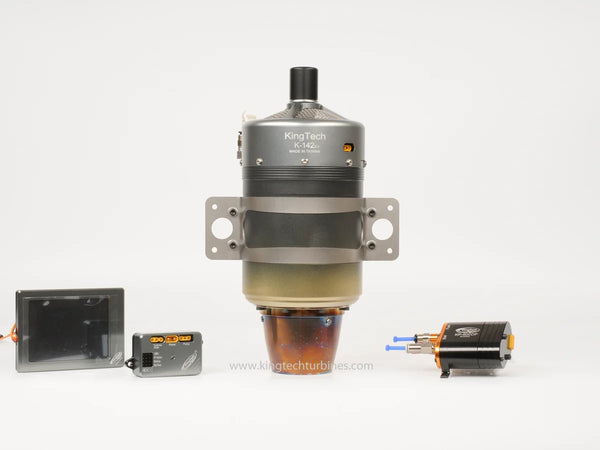

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP600DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
