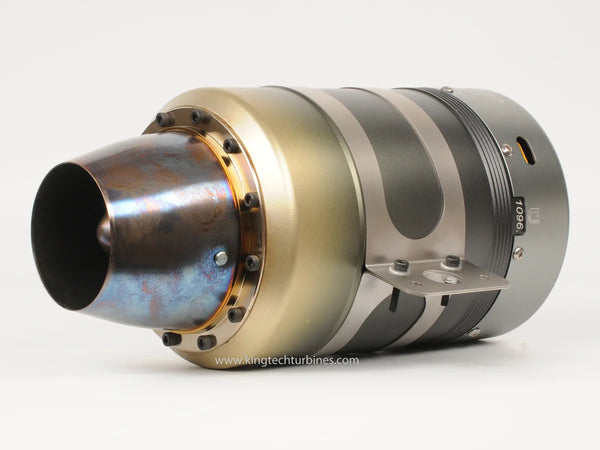

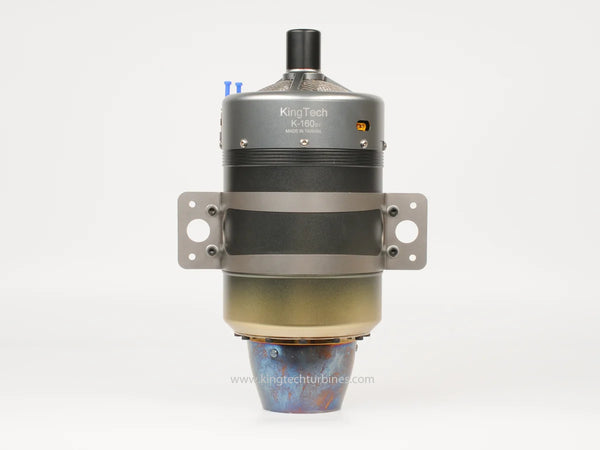

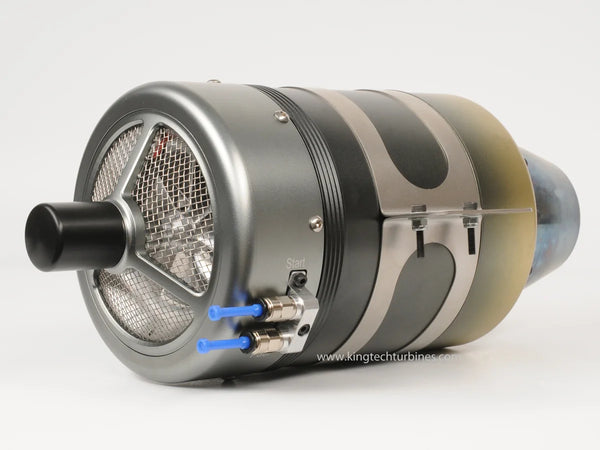

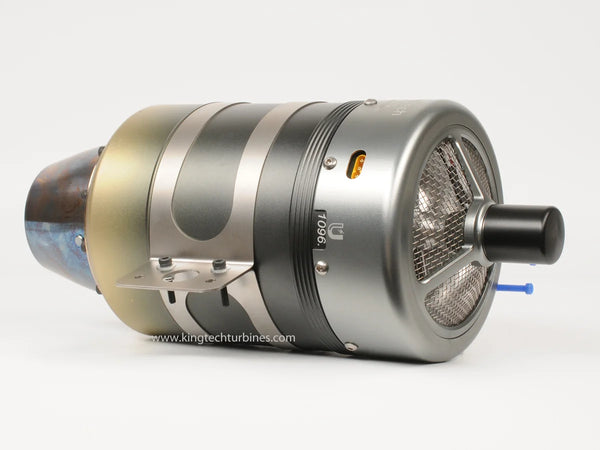

K-160G5 SPECIFICATIONS
Diameter: 103mm / 4.05”
Length: 251mm / 9.88”
Weight: 1540g / 3.39lb
Maximum RPM: 125000
Thrust: 16kg @ 15°C / 35 lb @ 59°F
EGT: 740°C max

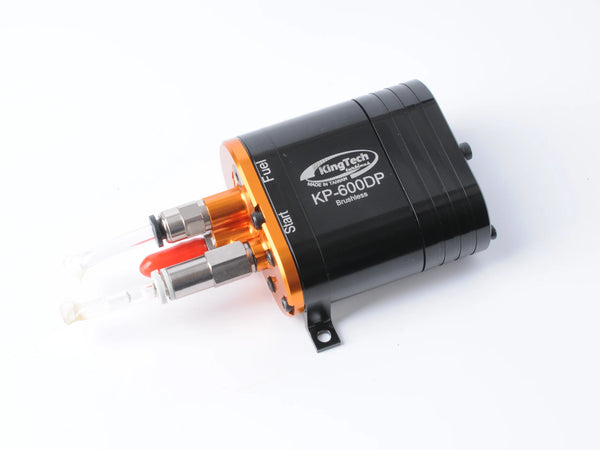

Pump Type: Digital Sbus brushless pump KP600DP
Battery: 11.1V Lipo ( At least 2200mah 35C )
Start Time: 10-15 seconds
Fuel consumption: 490g / min ( 17.28 oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

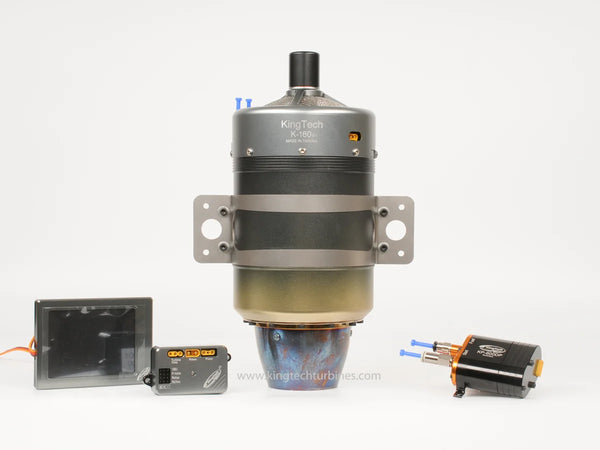

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP600DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
