K-180G5 SPECIFICATIONS
Diameter: 103mm / 4.05”
Length: 251mm / 9.88”
Weight: 1540g / 3.39lb
Maximum RPM: up to 130000

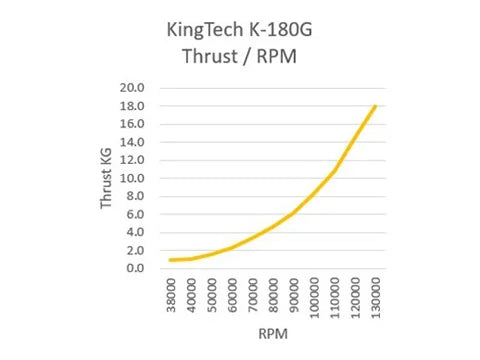

Thrust: 18kg @ 15°C / 40 lb @ 59°F
EGT: 700°C max

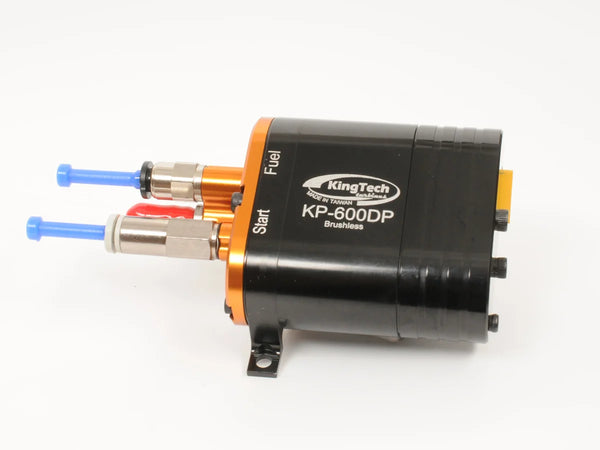

Pump type: Digital sbus brushless pump KP600DP
Battery:11.1v Lipo ( At least 2200mah 35C )
Start time: 10~15 seconds

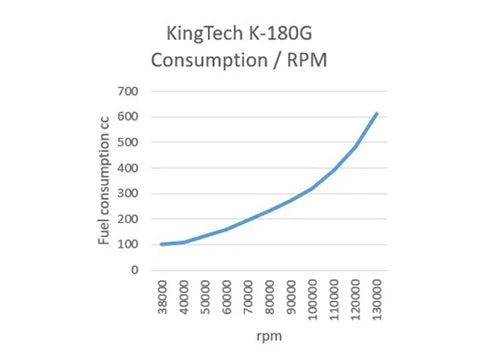

Fuel consumption: 560g / min ( 17.28oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

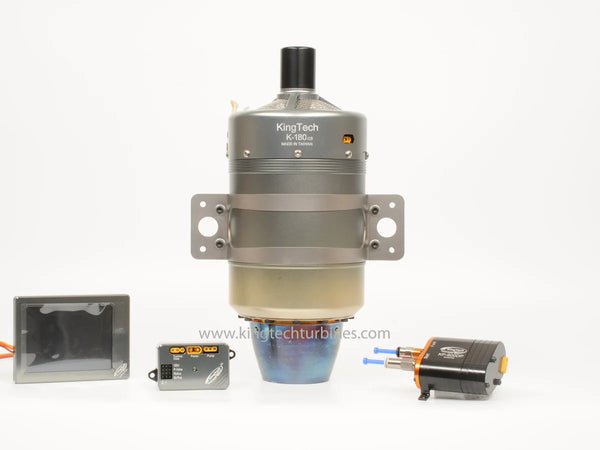

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP600DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
