K-260G5 SPECIFICATIONS
Diameter: 120mm / 4.72”
Length: 299mm / 11.77”
Weight: 2200g / 4.85lb
Maximum RPM: 112,000RPM
Max Thrust: 26kg ±0.5 ( 57lb )
EGT: 750°C max

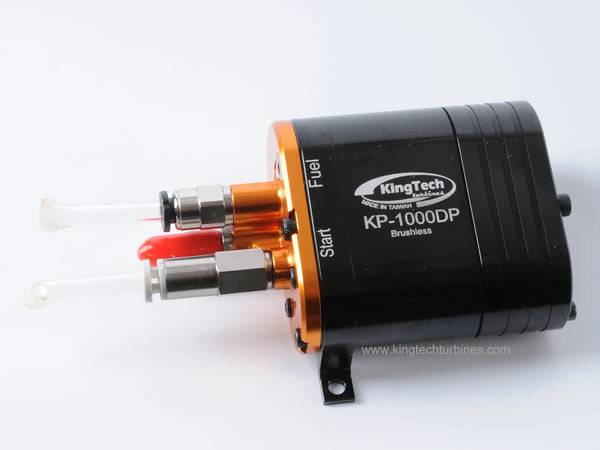

Pump type: Digital sbus brushless pump KP1000DP
Battery:11.1v Lipo ( At least 2200mah 35C )
Start time: 10~15 seconds

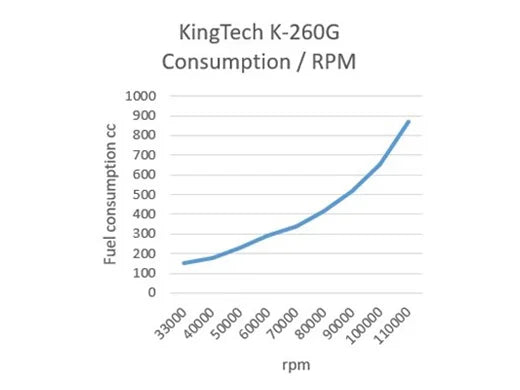

Fuel consumption: 760g / min ( 26.80oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$350

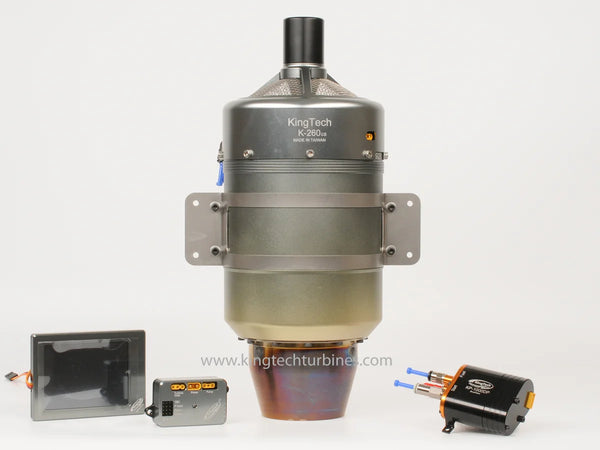

G5 MODEL COMPONENTS LIST

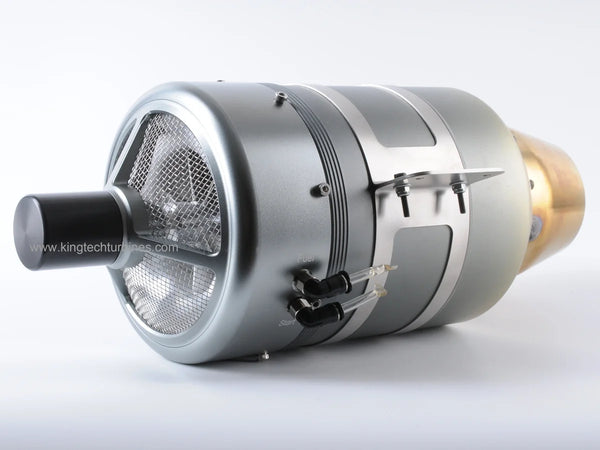

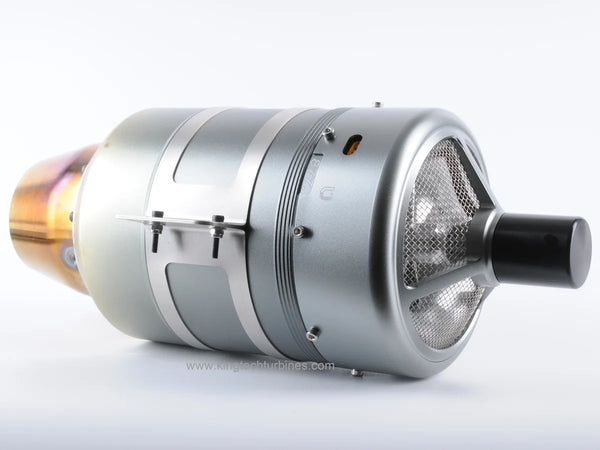

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP1000DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
