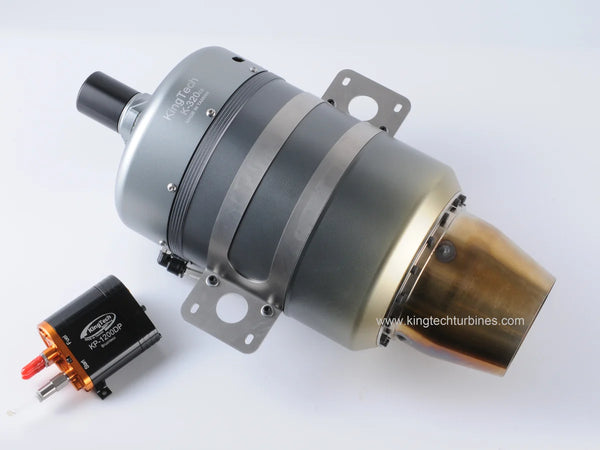

K-320G5 SPECIFICATIONS
Diameter: 132.5mm / 5.21″
Length: 335mm / 13.19″
Weight: 2900g / 6.39lb

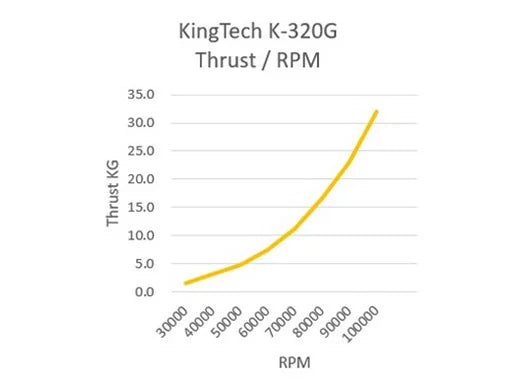

Maximum RPM: 100,000RPM
Max Thrust: 32kg / 71lb
EGT: 730°C max

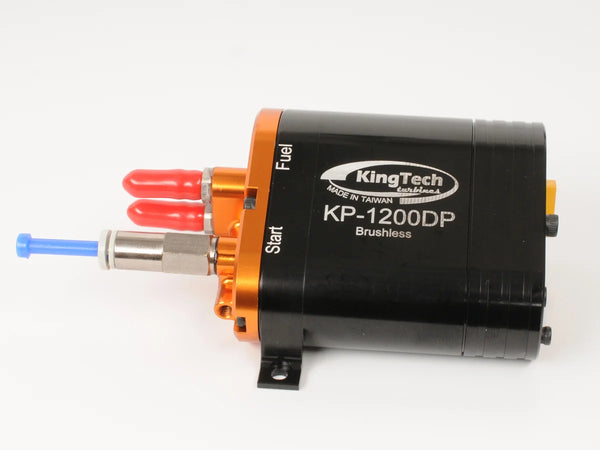

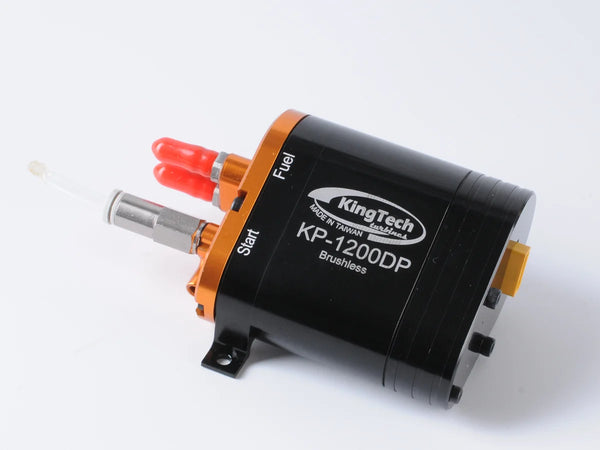

Pump type: Digital sbus brushless pump KP1200DP
Battery:11.1v Lipo ( At least 2200mah 35C )
Start time: 10~15 seconds

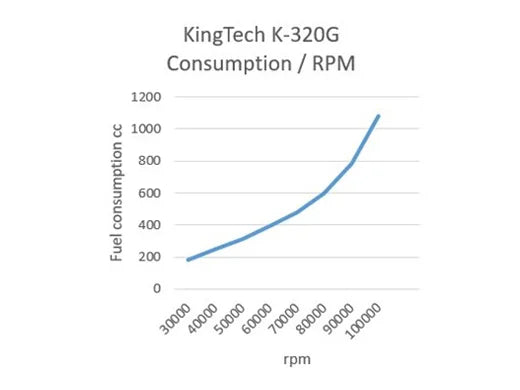

Fuel consumption: 870g / min ( 30.68oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$350

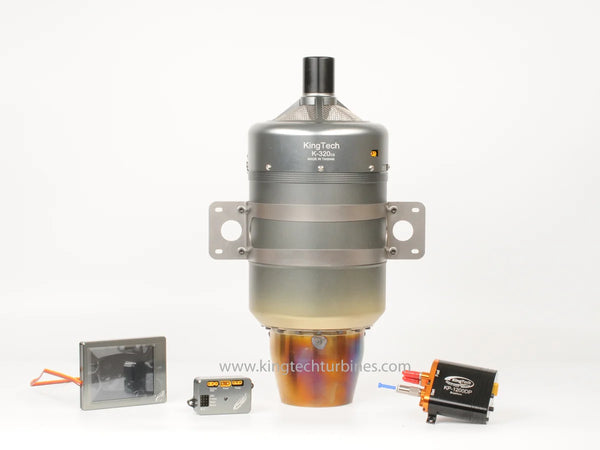

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP1200DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
