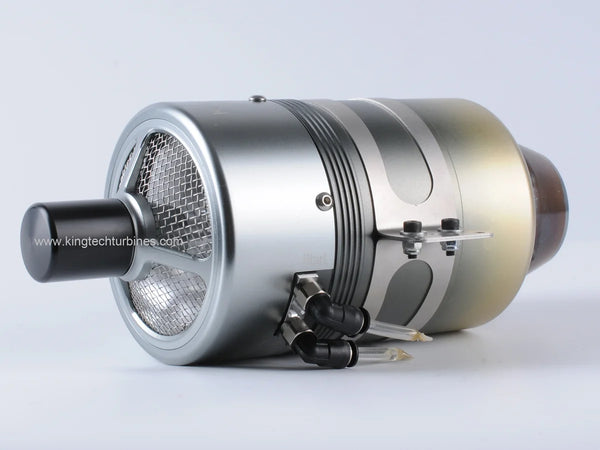

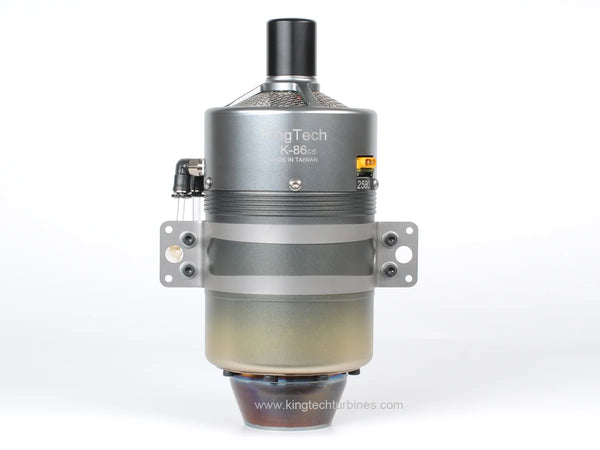

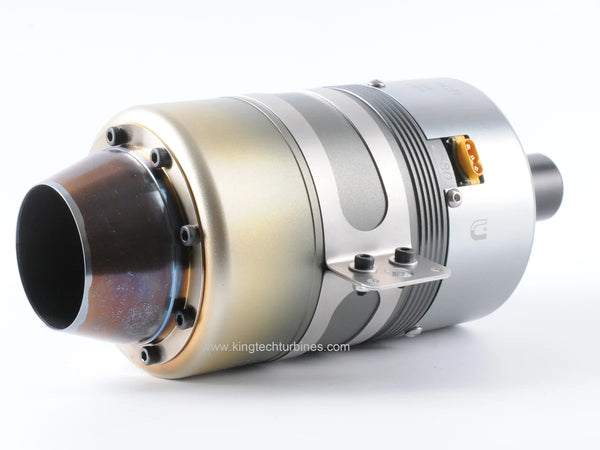

K-86G5 SPECIFICATIONS
Diameter: 76mm / 2.99”
Length: 178mm / 7.00”
Weight: 725g / 1.9lb ( not including brackets )
Maximum RPM: 176,000
Thrust: 8.6 kg @ 15°C. / 18.75 lb @ 59°F
EGT: 700°C max

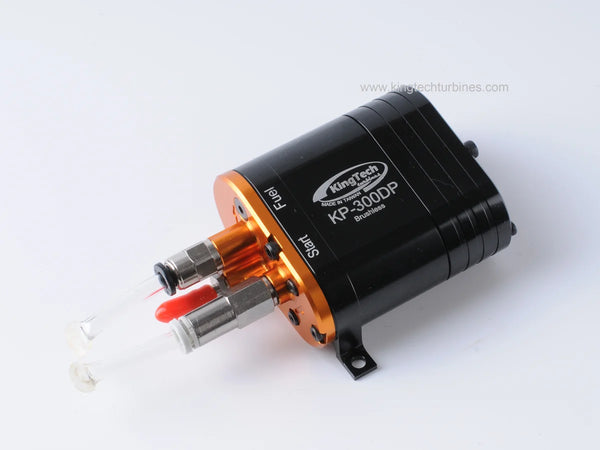

Pump Type: Digital Sbus brushless pump KP300DP
Battery: 11.1v Lipo ( At least 2200mah 35C)
Start Time: 15-20 seconds
Fuel consumption: 300g / min ( 10.58oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

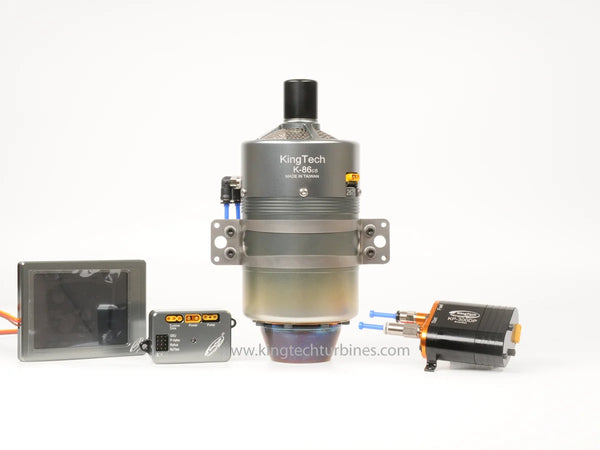

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP300DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
