K-100TPG4 SPECIFICATIONS

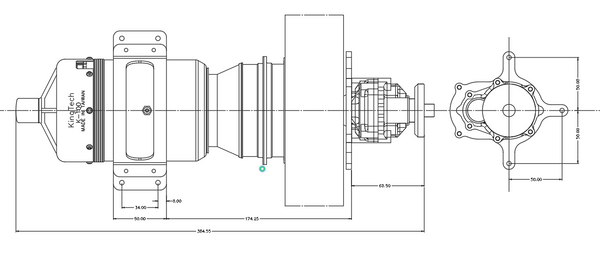

Length: 384.55mm ( 15.139" )
Weight: 2850g ( 6 lb 4.5 oz )
Maximum Turbine RPM: up to 140,000
Power:13KW ( 6200 RPM )
EGT: 700°c max ( 1292°f max )
Fuel consumption: 360 g / min ( 12.69 oz. )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$550
Recommended Propeller: 26 x 22 x 3B
Thrust: 36kg
- KingTech G4 utilizes SBus data transmission.
- Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
- The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
- A micro USB connector is present for a future connectivity of wireless mobile apps.
- The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
- After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
