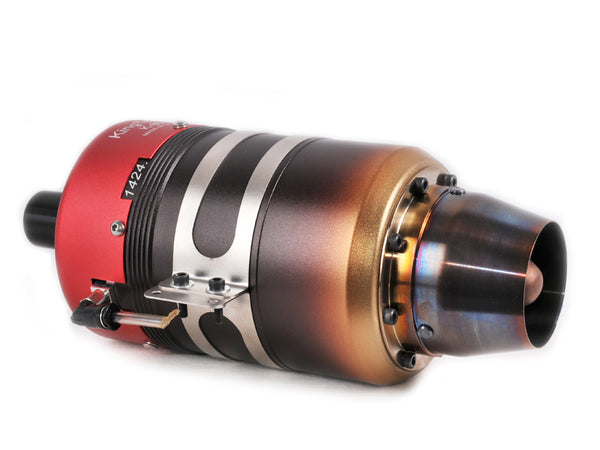

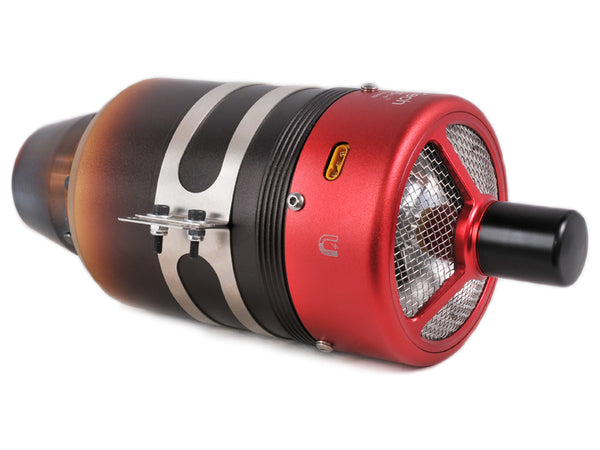

KingTech K-85G4+
Diameter: 82mm ( 3.22” )
Length: 205mm ( 8.07” )
Weight: 880g ( 1 lb 14 oz )
Maximum RPM: up to 170000 max
Thrust: 8.5 kg @ 15° C. ( 18.74 lb @ 59° F )
EGT: 700°C max
Fuel consumption: 300 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300

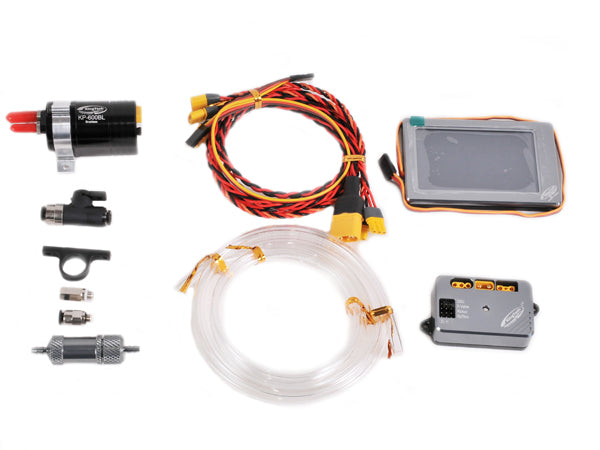

G4+ MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

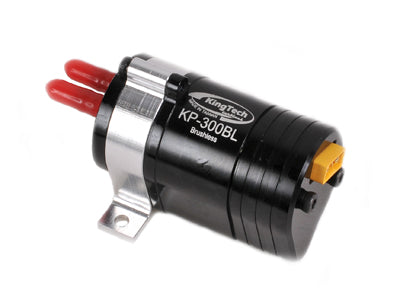

• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
Diameter: 82mm ( 3.22” )
Length: 205mm ( 8.07” )
Weight: 880g ( 1 lb 14 oz )
Maximum RPM: up to 170000 max
Thrust: 8.5 kg @ 15° C. ( 18.74 lb @ 59° F )
EGT: 700°C max
Fuel consumption: 300 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$300
G4+ MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
